In recent years, Sibo has continuously made breakthroughs in scientific and technological innovation, and successfully launched the digital and bus signal multi-turn encoders, which has brought convenience and benefits to many industries. Let's introduce the characteristics of multi-turn encoder to you.

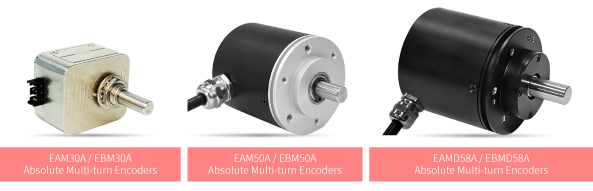

EAM30A/EBM30A

This is the smallest multi-turn encoders of Sibo, which uses the multi-turn encoder technology of absolute value gear group and magnetic sensing technology to realize the absolute multi-turn measurement of 60 turns. Its operating voltage is 3.3V~5V and 12V~30V, and its output signals are optional for SSI, RS485, and CAN. It also has flexible zero setting mode, reverse connection protection function, and good electromagnetic shielding performance.

EAM50A/EBM50A

This product with a diameter of 50mm adopts an aluminum alloy integrated flange and an aluminum alloy housing, which is sturdy and reliable, with a protection degree up to IP65. Its single-turn resolution can reach 14 bit (16384), the multi-turn resolution can reach 12 bit (4096 cycles), the repetition accuracy is ± 1 Lsb., and the linearity is ± 0.3%. It also supports a variety of output types and multiple interface types.

EAMD58A/EBMD58A

This product is heavy-duty, with a maximum number of 16384 turns (14bit). It has a high protection level, robust and reliable, suitable for harsh working environments. Its operating voltage is 9-30V wide voltage, and its output signals include SSI and RS485. It can also be customized according to customer requirements. It can also provide a variety of shaft diameter options, special machining of shafts, and blind hole shafts.

Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.

More information

Shanghai Sibo M&E Co., Ltd is a renowned enterprise and recognized by numerous awards such as Shanghai High-tech Enterprise, Shanghai "Specialized and Innovative" Enterprise, Shanghai SMS Enterprise, Shanghai Class AAA Contract Credit Enterprise, Class A Taxpayer Enterprise, and Shanghai Advanced Private Enterprise. Meanwhile SIBO has achieved quality management certification ISO9000.The company's products have been exported to overseas markets such as Southeast Asia, Europe and the United States for a long time. There are thousands of types of products, including potentiometers, joysticks, pedals, draw wire sensors, encoders, handwheels, and signal communication modules. Welcome to inquire and patronize!

For more product information, please visit Sibo's website at www.whhyzb.cn/en/
