Sibo has focused on potentiometers and sensors for 30 years.

SBP-022
SBP-022

SBP-022

Protection Module

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Output: 0～5V & 0～10V

  • Wide voltage supply

  • Can be connected to two contactless potentiometers or a dual-channelcontactless potentiometer

  • Can be used with various types of contactless potentiometer of SIBO

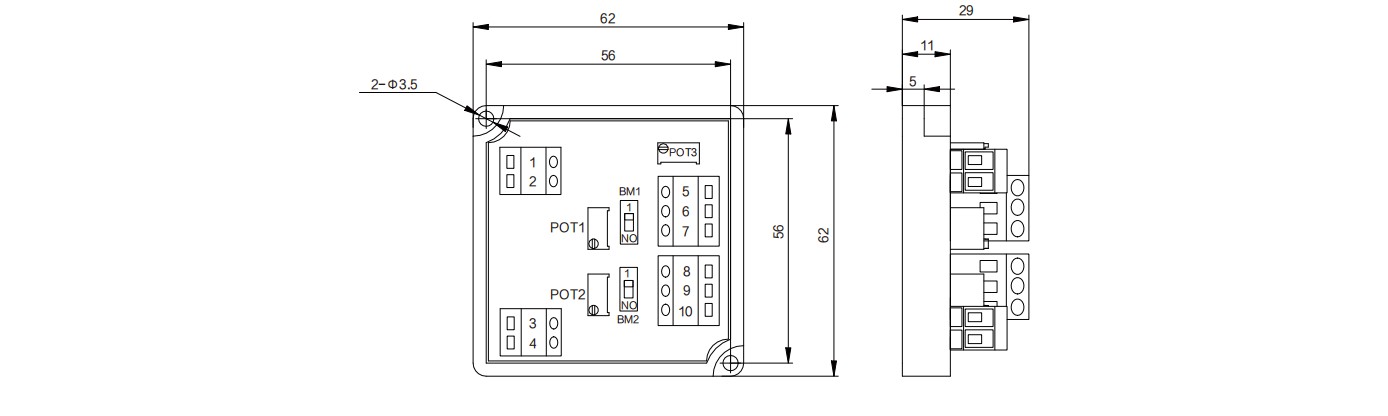

Dimension


Parameter

General Mechanical Specifications

Protection degree

IP20

Installation mode

Screwmount

Housing material

Black nylon

Environmental Specifications

Operating temperature range

-20℃~+70℃

Storage temperature range

-20℃~+70℃

General Electrical Specifications

Applied voltage

9~30V.DC

Output signal

0~5V.DC

Current consumption

1 potentiometer ＜16mA, 2 potentiometers ＜24mA

Load resistance

>100KΩ

EFT

IEC61000-4-4 / Level 2

SURGE

IEC61000-4-5 / Level 4
