Sibo has focused on potentiometers and sensors for 30 years.

R15M
R15M

R15M

Multi-turn Contactless Magnetic POT.

瀏覽量: Time: 2022-12-08

    Characteristics:

  • Absolute multi-turn version

  • Magnetic rotary sensor (Hall effect)

  • Pocket size

  • Bushing mount

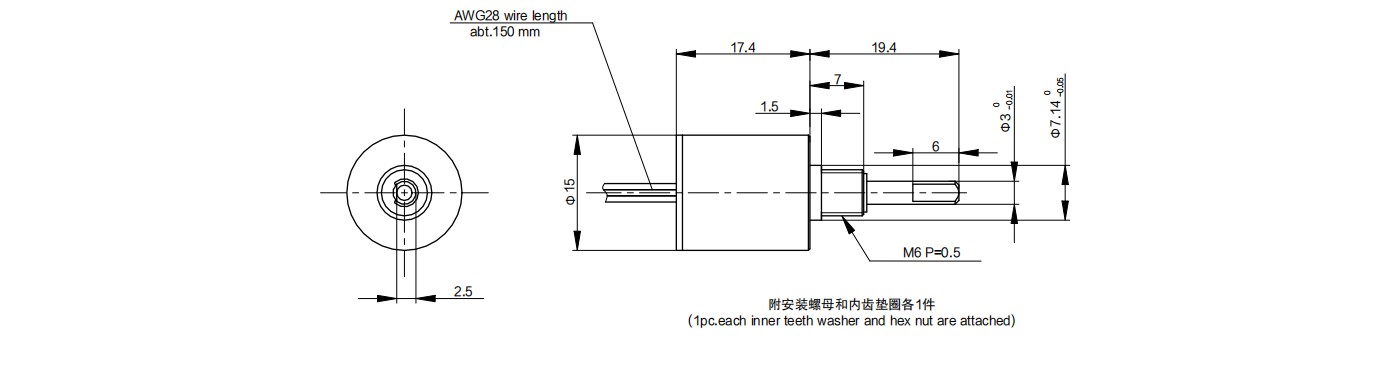

Dimension

R15M(圖1)

Parameter

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP65

Operating torque

<2.5mN·m

Life expectancy

20,000,000

Mass

Approx.12g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-30℃~+125℃

Storage temperature range

-30℃~+125℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

R15M 0505 W1080

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>10KΩ

Effective electrical angle

1080º

Independent linearity tolerance

±0.5%

Resolution

4096(12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special analog signals

PWM

Other output signals

SER, SPI

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、flatted etc.)
