Sibo has focused on potentiometers and sensors for 30 years.

R22M
R22M
R22M

R22M

Multi-turn Contactless Magnetic POT.

瀏覽量: Time: 2023-01-09

    Characteristics:

  • Absolute multi-turn version

  • Magnetic rotary sensor (Hall effect)

  • High protection degree

  • Anti-interference

  • Bushing mount

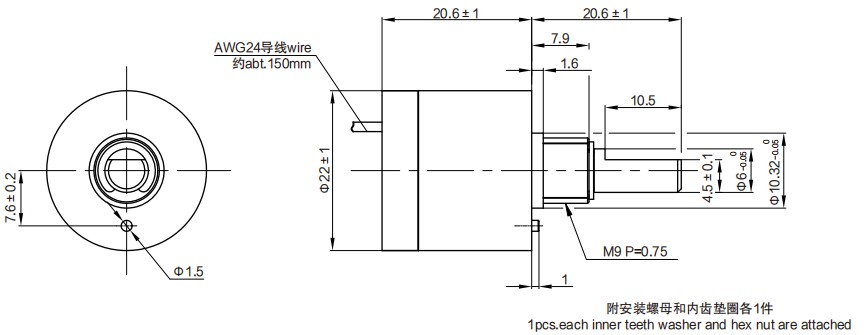

Dimension


Parameter

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP65

Operating torque

<5mN·m

Life expectancy

20,000,000

Mass

Approx.32g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Environmental Specifications

Operating temperature range

-30℃~+85℃

Storage temperature range

-30℃~+85℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

R22M 0505 W3800(For more input voltage/output signal such as 2410、2405, please check our catalog.)

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>100KΩ

Effective electrical angle

3800º

Independent linearity tolerance

±0.5%

Resolution

4096(12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Input voltage/output signal

0505

5V±10% / 0~100%Vcc

2410

15~30V / 0~10V

2405

9~30V / 0~5V

Special Specifications Available

Special analog signals

2442:15~30V applied, 4~20mA output, 1010:10V applied, 0~10V output, 0305:3.3V applied, 0~5V output, Dual analog signal and PWM

Other output signals

SER, SPI

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、flatted etc.)
