Sibo has focused on potentiometers and sensors for 30 years.

H60JHK
H60JHK

H60JHK

Magnetic-type Joysticks

瀏覽量： Time: 2023-01-09

    Characteristics：

  • 3-dimensional coordinate type joystick

  • Potentiometer incorporated type　

  • Hall effect joystick

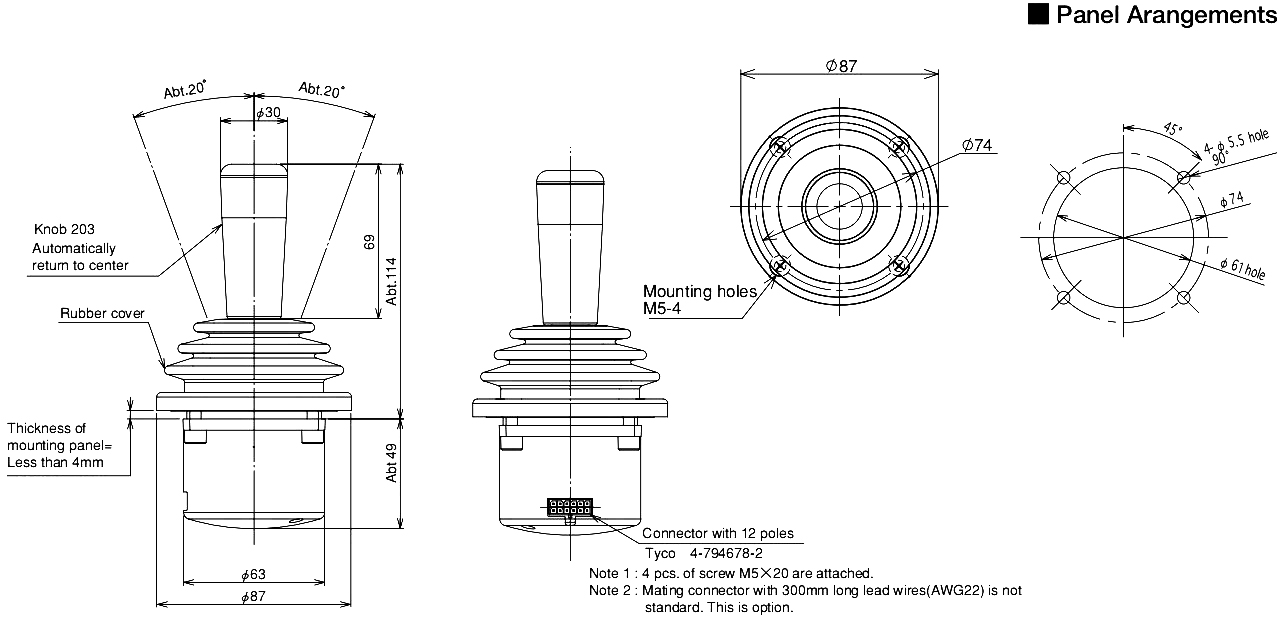

Dimension


Parameter

General Mechanical Specifications

Controlling range of operating lever

2 dimensional coordinate type, X and Y directions : Approx.±20° from center position.

Operating force

Spring return device with directive feeling: Automatically return to center, X and Y directions : Approx. 3N～4.5N(300～450gf)

Operating temperature range

-20℃~+60℃

Vibration

10~55HZ,98m/s2

Shock

294m/s2

Mechanical life expectancy

Approx. 5,000,000 operations

Mass

Approx. 300 g

General Electrical Specifications

Type

Hall effect IC type resistive element incorporated

Applied voltage

5V±10%

Effective output

0.5V~4.5V

Electrical rotating angle

Approx.±20°

Independent linearity tolerance

±3%

Load resistance

＞10KΩ

Dielectric strength

1 minute at 500 V. A.C.

Insulation resistance

＞1000MΩ（500V.D.C）

EMS durability

100V/m (80MHz～1GHz 1kHz sine-wave 80%AM modulation)

ESD durability

±8kV contact ±15kV aerial discharge (Based on IEC61000-4-2)
