Sibo has focused on potentiometers and sensors for 30 years.

H50JAK
H50JAK

H50JAK

Magnetic-type Joysticks

瀏覽量： Time: 2023-01-09

    Characteristics：

  • 2-dimensional coordinate type joystick

  • Potentiometer outside-mounted type

  • Hall effect joystick

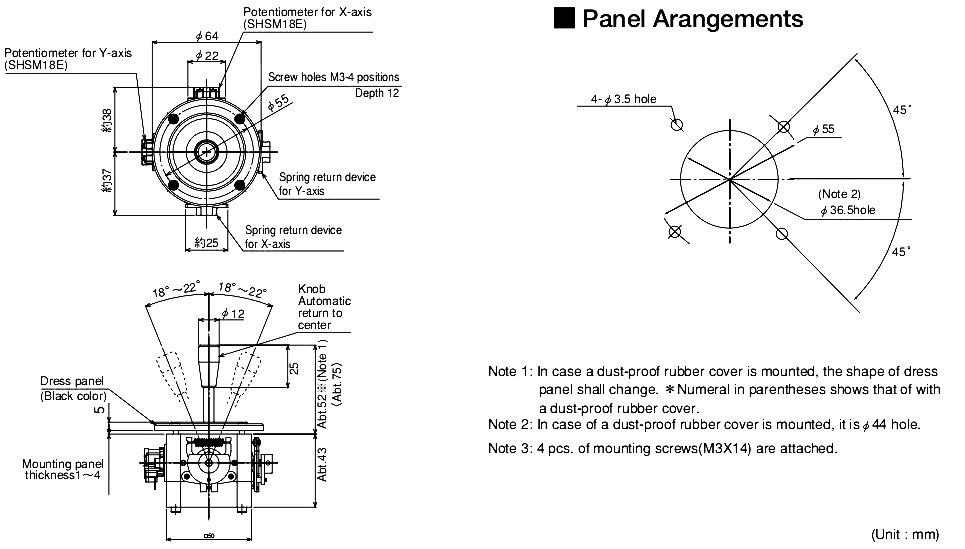

Dimension


Parameter

General Mechanical Specifications

Controlling range of operating lever

2-dimensional coordinate type. Omni-directionally approx.±18°～±22°operation from center position.

Operating force

With spring return device with directive feeling. X and Y directions: Approx.0.8～1.5N(80～150gf)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294m/s2

Mechanical life expectancy

Approx.10,000,000 operations

Mass

Mass 2-dimensional coordinate type: Approx.280g

General Electrical Specifications

Type

Hall effect IC type potentiometer(SHSM18E) mounted

Applied voltage

5VDC±10%

Effective output

Approx.0.5V～4.5V

Electrical rotating angle

Approx. ±18°

Independent linearity tolerance

±3%

Load resistance

>10KΩ

Resolution

Infinitesimal

Dielectric strength

1 minute at 250V.A.C.

Insulation resistance

＞100MΩ (250V.D.C.)

EMS durability

EMS durability 100V/m(80MHz ～ 1GHz 1KHz sine-wave 80%AM modulation)

ESD durability

ESD durability ±8KV contact ±15KV aerial discharge (Based on IEC61000-4-2)
