Sibo has focused on potentiometers and sensors for 30 years.

H25JBM
H25JBM

H25JBM

Magnetic-type Joysticks

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Hall effect miniature thumbstick

  • 2-dimensional coordinate

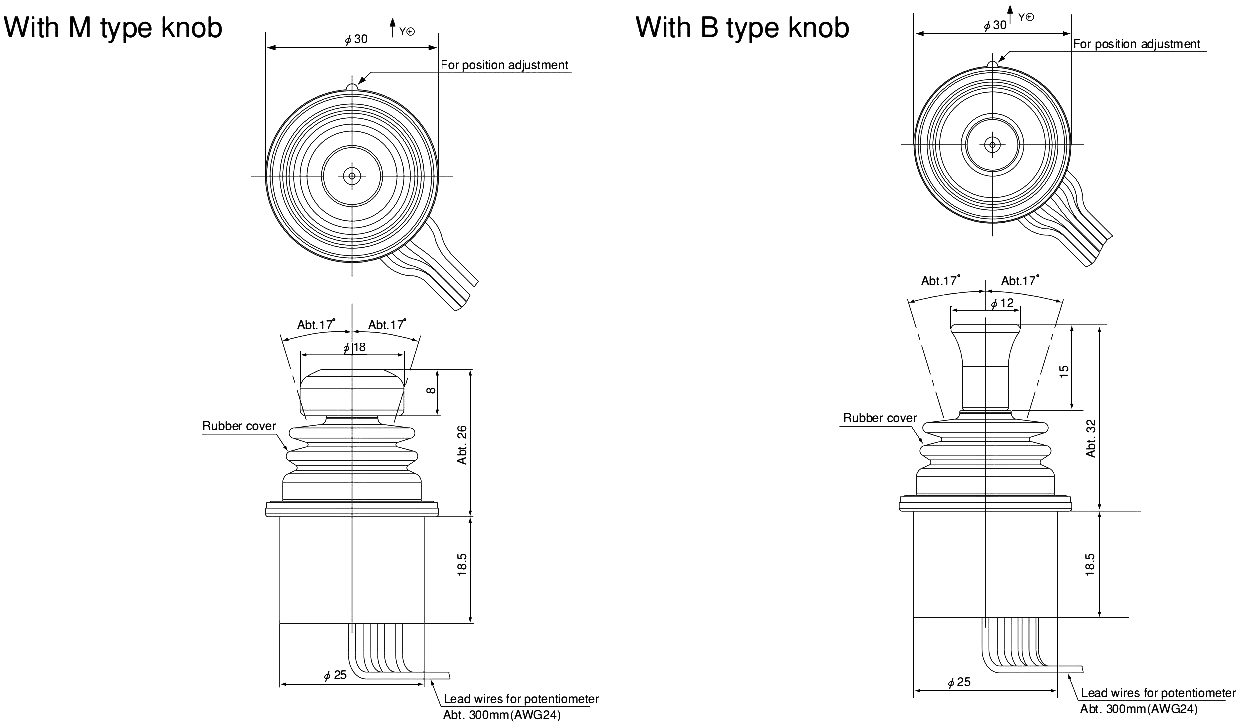

Dimension


Parameter

General Mechanical Specifications

Controlling range of operating lever

Omni-directionally approx. ±17° from center position

Operating force

Spring return device (Automatically return to center), X&Y directions: Approx. 1N～2.5N

Operating temperature range

-20℃～+60℃

Vibration

10～55Hz 98 m/s2

Shock

294 m/s²

Mechanical life expectancy

Approx. 2,000,000 operations

Mass

Single output type: Approx. 22g, Dual output type: Approx. 24g

General Electrical Specifications

Applied voltage

5VDC±10%

Effective output

0.5V～4.5V

Electrical rotating angle

X&Y directions: Approx. ±17° (Approx.34°)

Independent linearity tolerance

±3%FS

Load resistance

>10KΩ

Dielectric strength

1 minute at A. C. 500V

Insulation resistance

>1000MΩ（500V.D.C）

EMS durability

100V/m (80MHz～1GHz 1kHz sine-wave 80%AM modulation)

ESD durability

±8kV contact ±15kV aerial discharge (Based on IEC61000-4-2)
