Sibo has focused on potentiometers and sensors for 30 years.

18FLPA
18FLPA

18FLPA

Linear Conductive Plastic POT.

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Linear Potentiometers/Linear Sensors

  • Conductive Plastic

  • With front extended shaft　

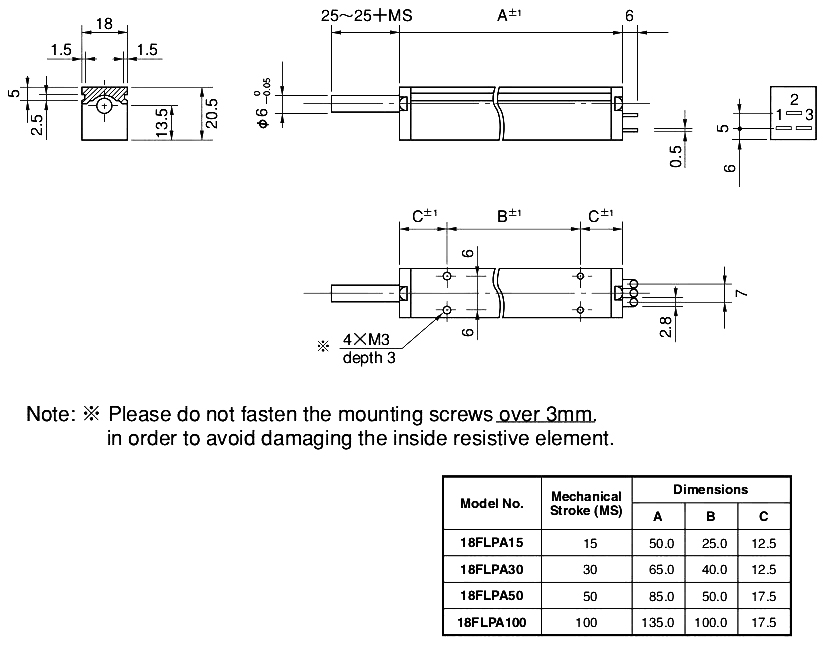

Dimension


Parameter

General Specifications (18FLPA15)

Standard Resistance Values

500,1K,2K,5K,10K

Total Resistance Tolerance

±10%(K)

Independent Linearity Tolerance

Standard Class ±0.7%, Precision Class ±0.5%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

0.3W

Electrical Stroke

15±0.5mm

Mechanical Stroke (MS)

15mm

Insulation Resistance

>1000MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<0.3N(30gf)

Stopper Strength

Approx. 90N(9kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx.60g

General Specifications (18FLPA30)

Standard Resistance Values

500,1K,2K,5K,10K

Total Resistance Tolerance

±10%(K)

Independent Linearity Tolerance

Standard Class ±0.7%, Precision Class ±0.5%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

0.6W

Electrical Stroke

30±0.5mm

Mechanical Stroke (MS)

30mm

Insulation Resistance

>1000MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<0.3N(30gf)

Stopper Strength

Approx. 90N(9kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx.70g

General Specifications (18FLPA50)

Standard Resistance Values

500,1K,2K,5K,10K

Total Resistance Tolerance

±10%(K)

Independent Linearity Tolerance

Standard Class ±0.4%, Precision Class ±0.25%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

0.75W

Electrical Stroke

50±0.5mm

Mechanical Stroke (MS)

50mm

Insulation Resistance

>1000MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<1N(100gf)

Stopper Strength

Approx. 90N(9kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx.100g

General Specifications (18FLPA100)

Standard Resistance Values

1K,2K,5K,10K,20K

Total Resistance Tolerance

±10%(K)

Independent Linearity Tolerance

Standard Class ±0.3%, Precision Class ±0.2%

Resolution

Essentially infinite

Output Smoothness

<against input voltage 0.1%

Contact Resistance Variation

<2%C.R.V.

Power Rating

1.25W

Electrical Stroke

100±0.5mm

Mechanical Stroke (MS)

100mm

Insulation Resistance

>1000MΩ(1000V.D.C.)

Dielectric Strength

1 minute at 1,000V.A.C.

Friction

<1N(100gf)

Stopper Strength

Approx. 90N(9kgf)

Resistance Temperature Coefficient

±400p.p.m./℃

Mass

Approx. 140g

Special Specifications Available

Special stroke

Stroke 150mm (S18FLPA150), stroke 200mm (S18FLPA200)

Special structure

Sealed type (IP54, The length of "A" is extended by abt. 6mm.)

Special shaft type

Special machining on the shaft

With spring return device

Up to 100mm stroke. Friction is 3N [300gf]. Spring return device is mounted on the outer shaft but the length of
