Sibo has focused on potentiometers and sensors for 30 years.

DB10-26B
DB10-26B

DB10-26B

Digital-Readout Dials

瀏覽量： Time: 2023-01-09

    Characteristics：

  • Digital-Readout

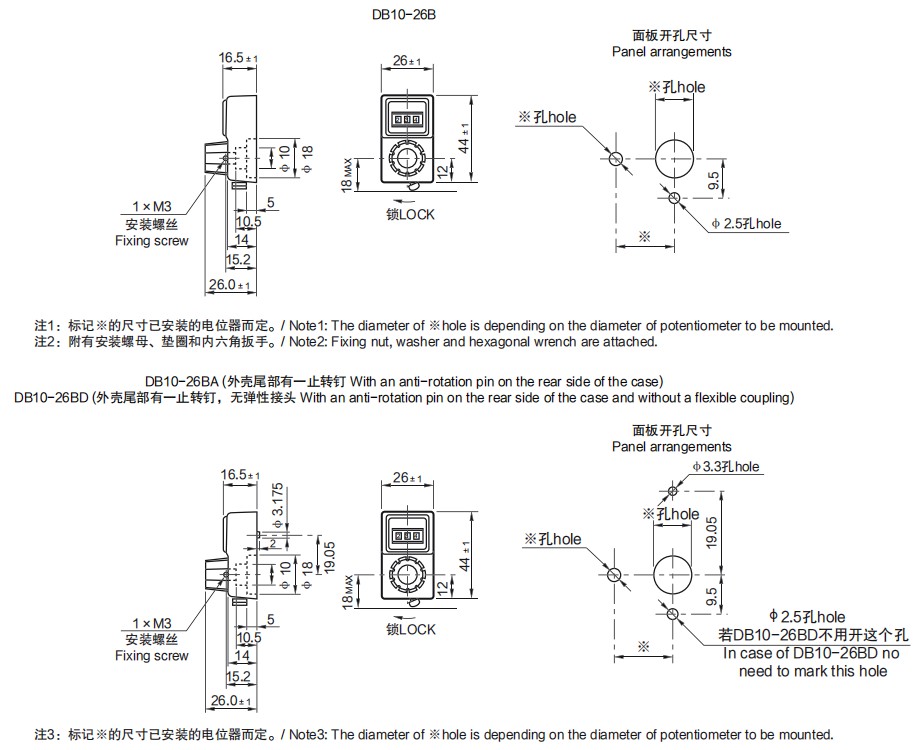

Dimension


Parameter

General Specifications (DB10-26B)

Number of Turns-Counting.

10

Max. Indication

999

Matching Shaft Dia. (mm)

Standard 6, Special 3, 3.175, 4, 6.35

Combinable Helicalohm Pot.

(Matching shaft length of 25mm) 20HP, 46HD, 22HP, 20HHP, 22HHP, 25HP

Standard Color of Case

Ivory

Flexible coupling

Yes

Lock Device

Yes

Operating Temperature Range

-30℃~+85℃

Mass

Approx.60g

General Specifications (DB10-26BA)

Number of Turns-Counting.

10

Max. Indication

999

Matching Shaft Dia. (mm)

Standard 6, Special 3, 3.175, 4, 6.35

Combinable Helicalohm Pot.

(Matching shaft length of 25mm) 20HP, 46HD, 22HP, 20HHP, 22HHP, 25HP

Standard Color of Case

Silver

Flexible coupling

Yes

Lock Device

Yes

Operating Temperature Range

-30℃~+85℃

Mass

Approx.60g

General Specifications (DB10-26BD)

Number of Turns-Counting.

10

Max. Indication

999

Matching Shaft Dia. (mm)

Standard 6, Special 3, 3.175, 4, 6.35

Combinable Helicalohm Pot.

(Matching shaft length of 25mm) 20HP, 46HD, 22HP, 20HHP, 22HHP, 25HP

Standard Color of Case

Silver

Flexible coupling

No

Lock Device

Yes

Operating Temperature Range

-30℃~+85℃

Mass

Approx.60g

Special Specifications Available

Special color

Special colors on housing and spin plate on the top of the knob (Black, etc.)

Specially face plate

Special graduation such as with a decimal point, comma, etc
